SLP 100E
Demonstration Compare Technical Sheet
Hydraulic Hammer for SPT
With the Hydraulic Hammer you can do all the percussion work without excessive physical effort with an assistant and an operator. Making the service safer, with quality and efficiency.
Core Drilling
with a Compact Rig
Rotary system to confirm impenetrability with a capacity of up to 10M.
*Drilling capacity depends on soil conditions, tools and also correct operation of the equipment.
Operational Accessories
Vise / Tool Extractor
Hydraulic vise/tool extractor system with 8000 kgf. Allows for easy removal of tools from the most compact and difficult to extract soils.
Hydraulic Winch
Hydraulic winch system to assist in extracting rods during operating processes. Increasing safety and facilitating drilling.
Modular Tool Rack
The integrated tool rack optimizes job site space and keeps all your tools within reach, while maintaining the technical integrity of every component.
Hydraulic
Tracks
Self-propelled rubber tracks that allow easy and simple movement of equipment.

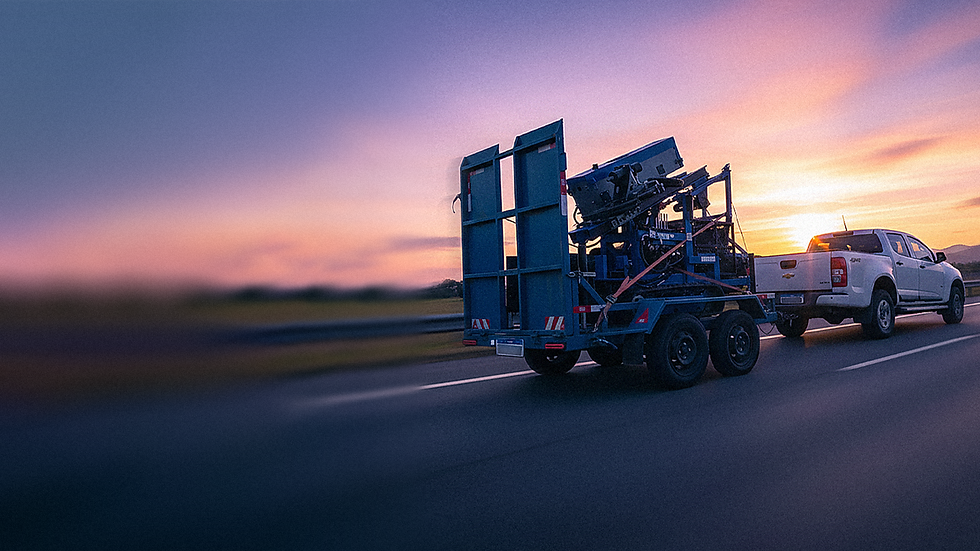

Easy to Carry
Transport your probe in trailers, vans or small trucks.
Making transportation logistics easier and more cost-effective.
SLP 160E Specifications
Engine
Engine Power
23 hp
Cylinders
2 Cylinders
Fuel
Gasoline
Average Consumption*
5,0 l/h
Max. Rotation
3600 RPM
Maximum Torque
4,9 Kgfm @ 2800 rpm

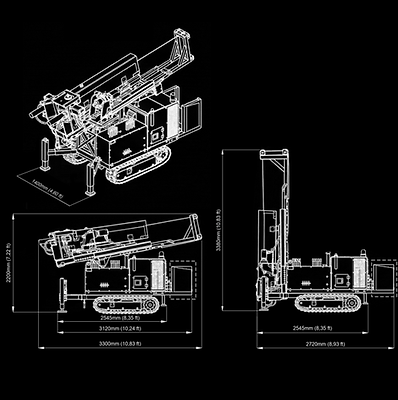

Dimensions*
Transport Mode (Mast Lowered)
Weight
1750 kg (3860 lbs)
Height
2200mm (7,22 ft)
Length (Min.)
2545mm (8,35 ft)
Width
1400mm (4,60 ft)
Length (Máx.)
3300mm (10,83 ft)
Operation Mode (Raised Mast)
Weight
1750 kg (3860 lbs)
Height
3380mm (11,10 ft)
Length (Min.)
2545mm (8,35 ft)
Width
1400mm (4,60 ft)
Length (Máx.)
2720mm (8,93 ft)
Automatic Drop Hammer
Hammer Weight
63,5 Kg
Drop Height
750mm
Drive
Hydraulic
Standard
ASTM D1586
*Hydraulic hammer settings are customizable to comply with local regulations and international standards such as ASTM or EN ISO.
Rotary System
Max. Rotation
0 - 90 RPM
Max Torque
800 Nm
Speed
Dual
Drilling Angle
90º
Drilling Capacity**
Percussion Drilling*
SPT (Recommended)
20M (65 ft)
SPT (Max.)
30M (98 ft)
Core Drilling*
Core Drilling ØA (Recom.)
05M (16 ft)
Core Drilling ØA (Max.)
10M (32 ft)
Warranty***
Structure & Systems
12 meses
Engine
6 Meses
* Non-binding information. Diamond Drill reserves the right to update data and dimensions for design improvements and updates without prior notice.
** Drilling capacity depends on soil conditions, tooling, and proper equipment operation.
*** Final equipment warranty is subject to the terms and conditions of the contract.
